19V33W

作者:  浏览量:2191  发布时间:2018-04-20 04:07:17

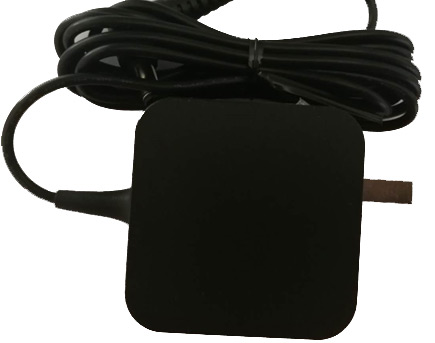

19V33W

技术规格:

Input

Input range:90Vac~264Vac

Frequency:47Hz~63Hz

Input current:1.0A Max at 100Vac input voltage

Efficiency:85% Min. at nominal input voltage, maximum load and measured at the end of DC cable


Output

Output Power:33W

Output Volts/Amps:19.0V/1.75A

Output ripple and noise:350 mV peak to peak


Dimensions (mm)

L53.0 x W53.0 x H28.5
