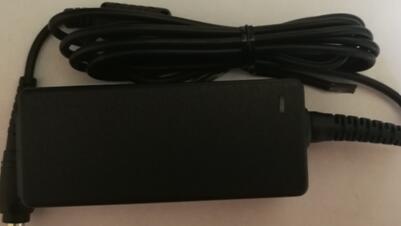

12V24W

作者:  浏览量:1873  发布时间:2018-04-20 04:48:42

12V24W

技术规格:

Input:

Input range:90Vac~264Vac

Frequency:47Hz~63Hz

Input current:1.0A Max at 100Vac input voltage

Efficiency:83% Min. at nominal input voltage, maximum load and measured at the end of DC cable


Output

Output Power:24W

Output Volts/Amps:12.0V/2.0A

Output ripple and noise:250 mV peak to peak


Dimensions (mm)

L48.0 x W48.0 x H28.5
