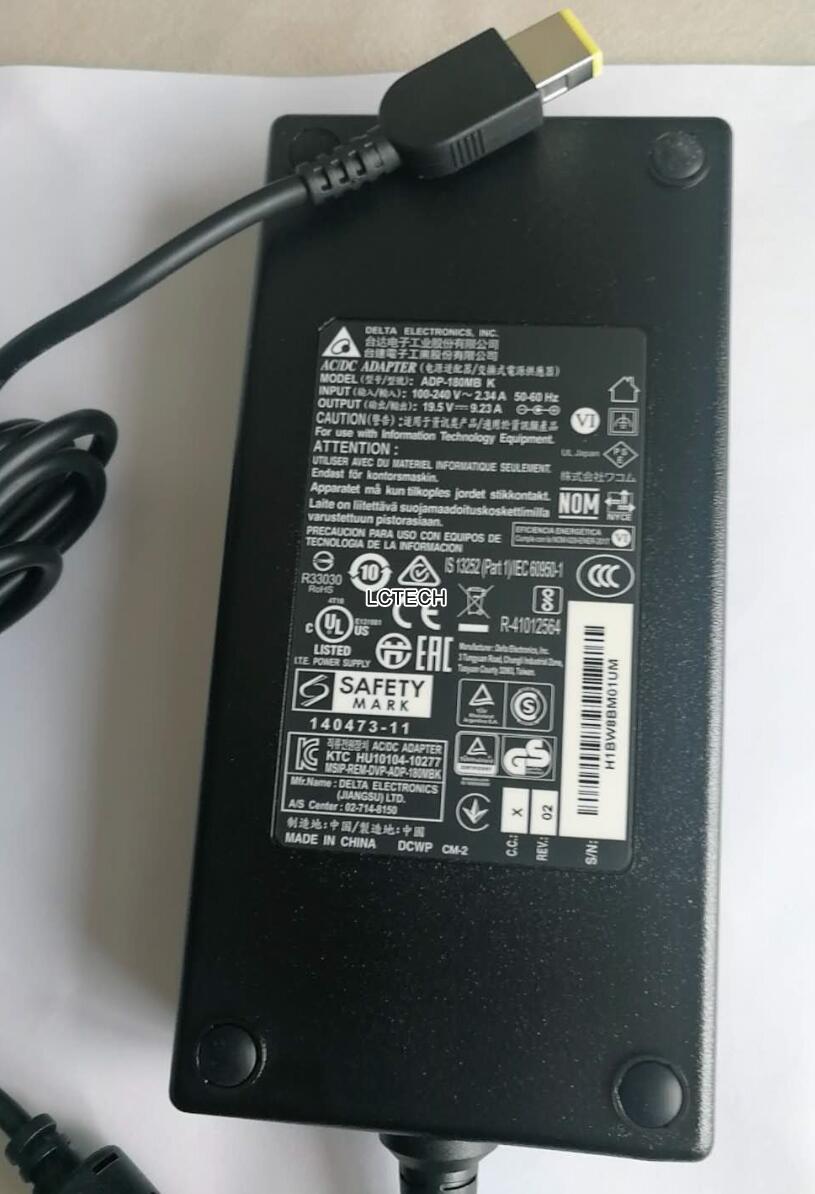

lenovo联想180W适配器 ADP-180MB

Technical specifications技术规格:


Input输入:

AC socket交流输入接口: C6  梅花尾

Input range输入电压范围:90Vac~264Vac

Frequency频率:47Hz~63Hz

Input current输入电流:2.34A Max at 90Vac input voltage

Efficiency效率:88% Min. at nominal input voltage, maximum load and measured at the end of DC cable


Output输出

Output Power输出功率:180W

Output Volts/Amps输出电压/电流:19.5V/9.23A

Output ripple and noise输出纹波:350 mV peak to peak

DC plug输出接口: lenovo plug


Dimensions 尺寸(mm)

L155.0 x W76.0 x H30

ADP-180MB K LVN
